Palace situated amongst large gardens and open space. The open space is a major green lung space for the city. The Kempegowda Watch Tower, a State Protected Heritage Site is located in this heritage zone. The heritage sites listed in this zone are presented in Table 23.
The Bangalore Palace is of Tudor style architecture with fortified towers, battlements and turrets.
| Sl. No. | Name of Heritage Site | Location | Ward No. | Ward name | Type of Building |
| Bangalore Palace Heritage Zone | Bangalore Palace Heritage Zone | Bangalore Palace Heritage Zone | Bangalore Palace Heritage Zone | Bangalore Palace Heritage Zone | Bangalore Palace Heritage Zone |
| Built Heritage | Built Heritage | Built Heritage | Built Heritage | Built Heritage | Built Heritage |
| 1 | Bangalore Palace | Palace Grounds, Vasanth Nagar | 35 | Armane Nagar | Public |
| 2 | Kempegowda tower/park - | Near Ramana Maharishi | 35 | Armane Nagar | Public |
| Sl. No. | Name of Heritage Site | Location | Ward No. | Ward name | Type of Building |
| State Protected | Park,Mekhri circle | ||||
| Natural Heritage | Natural Heritage | Natural Heritage | Natural Heritage | Natural Heritage | Natural Heritage |
| 1 | Palace grounds | Jayamahal | 93 | Vasanth Nagar | Open Space |
Regulations for Bangalore Palace Heritage Zone are given in Table 24.
| Aspects of Regulation | Bangalore Palace Heritage Zone |
|---|---|
| Regulations for all the Listed Heritage Sites in the particular heritage zone | Additional regulations for State Protected Kempegowda Watch Tower: Area adjacent to the monument, 100 m is prohibited area and 200 m is regulated area from mining activities and other construction activities |
| Infrastructure Upgradation | Any road improvements or junction improvements undertaken along the main roads to have clearance from the Authority / Heritage Committee |
| Vistas/ Views/Skyline | |
| Streetscape | Streetscape elements & street furniture must consider the surrounding architectural character or designed in a manner that does not mar the character of the heritage zone. |
| Signages | Information of the particular heritage building/site/zone/precinct except for traffic routes and boards to be allowed with prior clearance from Authority which when are specifically designed (size of signboards/colour/font size etc.) in accordance to local context. |
BANCAUSE DEVELOPMENT AUTHORITY
ing the Chowdiah road, back along the Palace road, along the Chalukya Circle and taking turn at Seshadri road to include the boundary/ extents of Freedom Park, along the Sir Y. Ramachandra Road, meeting the Palace road again till meeting the KG road at the State Bank of Mysore junction and continuing along the District Office road, meeting the Hudson circle / Corporation circle, taking turn at Mysore road to include the Kempegowda statue, thereby taking a turn to Kalinga Road road (to include the BBMP Corporation buildings and taking a turn at Devaraha Samaja road and then extending along the Kasturban road, taking a turn to Queens road at Queens cirsle and then meeting the Raj Bhavan road.
SAMSUNG DEVELOPMENT AUTHORITY
Parks & Open spaces Prohibited area (100mits) Regulated area (200mits)
Heritage Zones Built Heritage Natural Heritage Cultural Heritage

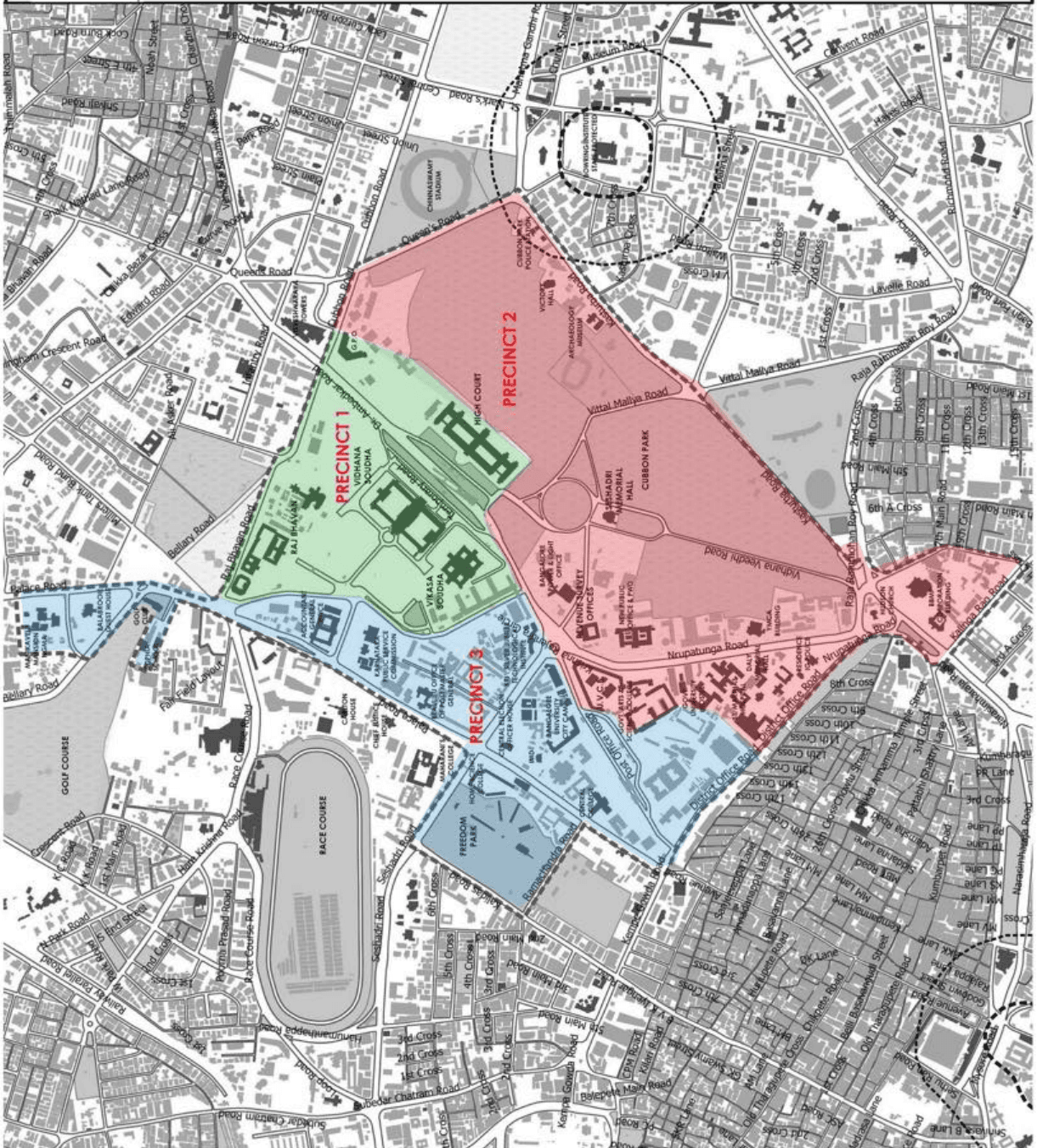

Precinct 3: Rest of the area of the Central Administrative Heritage Zone that is not included in the heritage Precinct 1 & 2
LEGEND

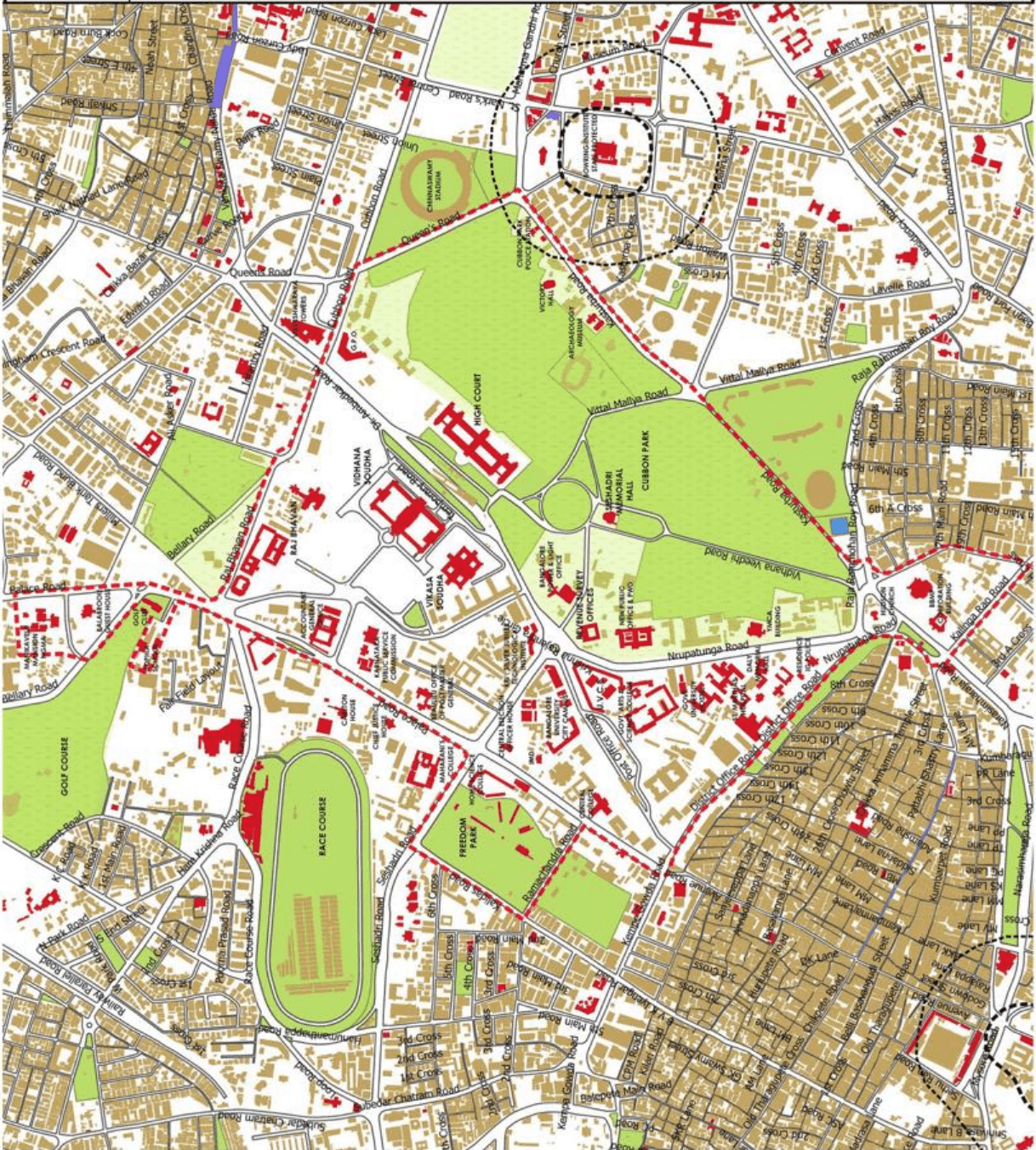

GPO. Its boundary includes along the Raj Bhavan road, meeting the Chalukya circle, taking a turn at Dr. Ambedkar Road that runs behind the Vidhan Soudha Complex, taking turn just before the KR circle and extending till the back of the High Court building property line and extending to GPO heritage building and meeting the Raj Bhavan road again.
Precinct 1: Administrative Complex of Vidhana Soudha/Vikas Soudha, High Court and
EXTENTS OF THE PRECINCTS IN THE HERITAGE ZONE
PRECINCTS 1, 2 & 3 Central Administrative
RMP for BDA LPA-2031 (Draft) MAP 2: PROPOSED HERITAGE
BANANA DEVELOPMENT AUTHORITY
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
hospital to Sultan road to include the St.Mary's hospital and St. Joseph Church and Convent, extending to meet the Mysore road and turning at Dr. TCM Roa road to close the heritage zone. This zone includes the once traditional walled city of Petta and the mud fort.

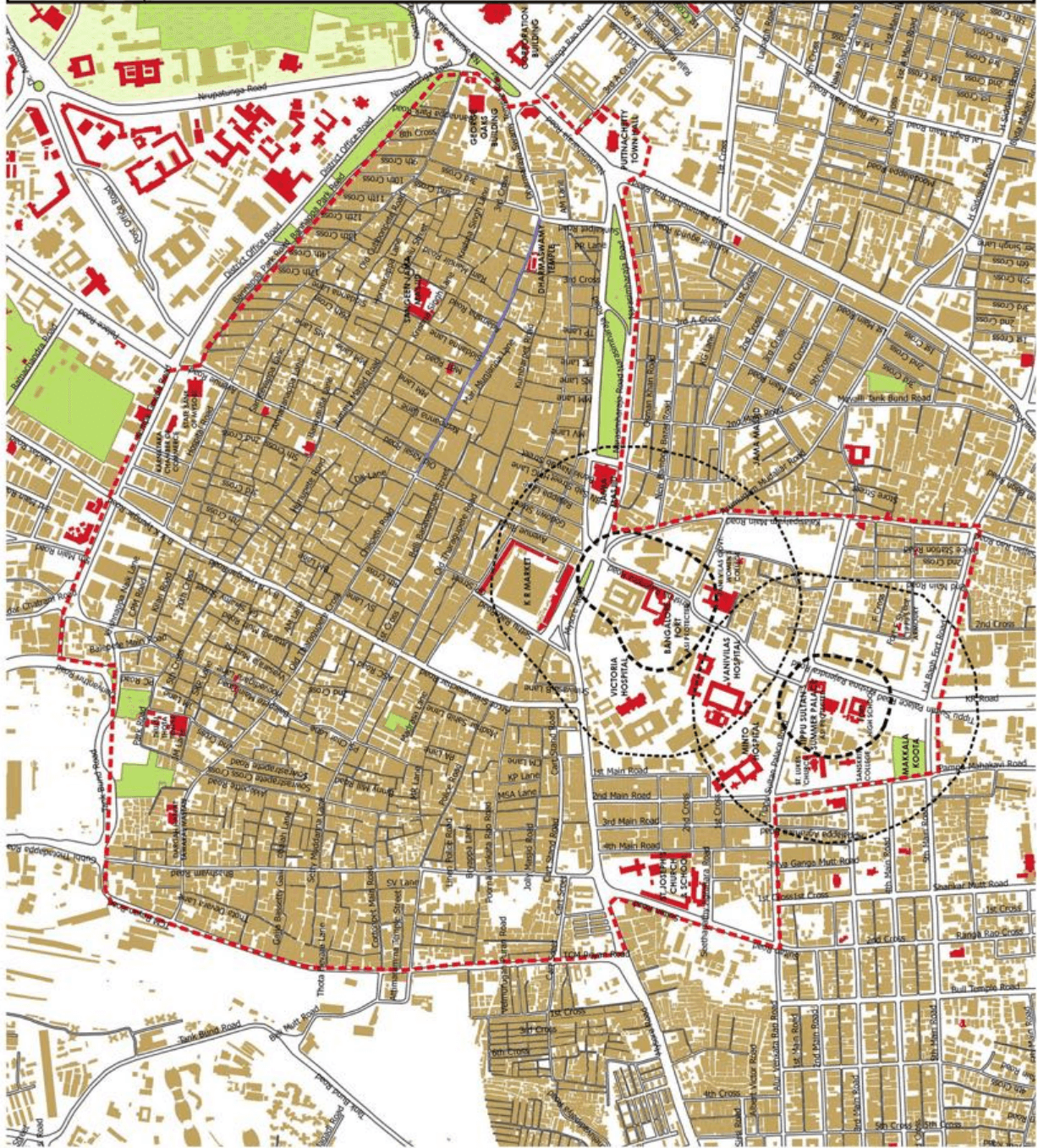

EXTENTS OF THE HERITAGE ZONE The zone comprises of the extents from Dr. TCM Roy road on the west, KG road on the north and north east and continuing along the Mysore road including the United India Insurance building, and extending to
RMP for BDA LPA-2031 (Draft) MAP 3: PROPOSED HERITAGE
SANSALAWA DEVELOPMENT AUTHORITY
Heritage Zones Built Heritage Natural Heritage Cultural Heritage
and extending to include the Jama Masjid and closing the precinct at the KR market.
Precinct 2: KR Market, Jama Masjid and Puttanachetty Town Hall Precinct It encloses the KR market along roads of Sethu Rao road, Old Patnoolpet road turning towards the boundary of the KR market, turning to the Silver Jubilee Park road, enclosing the Silver Jubilee Park, turning along NR road to enclose the Puttanachetty Town Hall and Haig Memorial Hall and the junction and back to NR road/Mysore road along the other edge of Silver Jubilee Park, and extending to

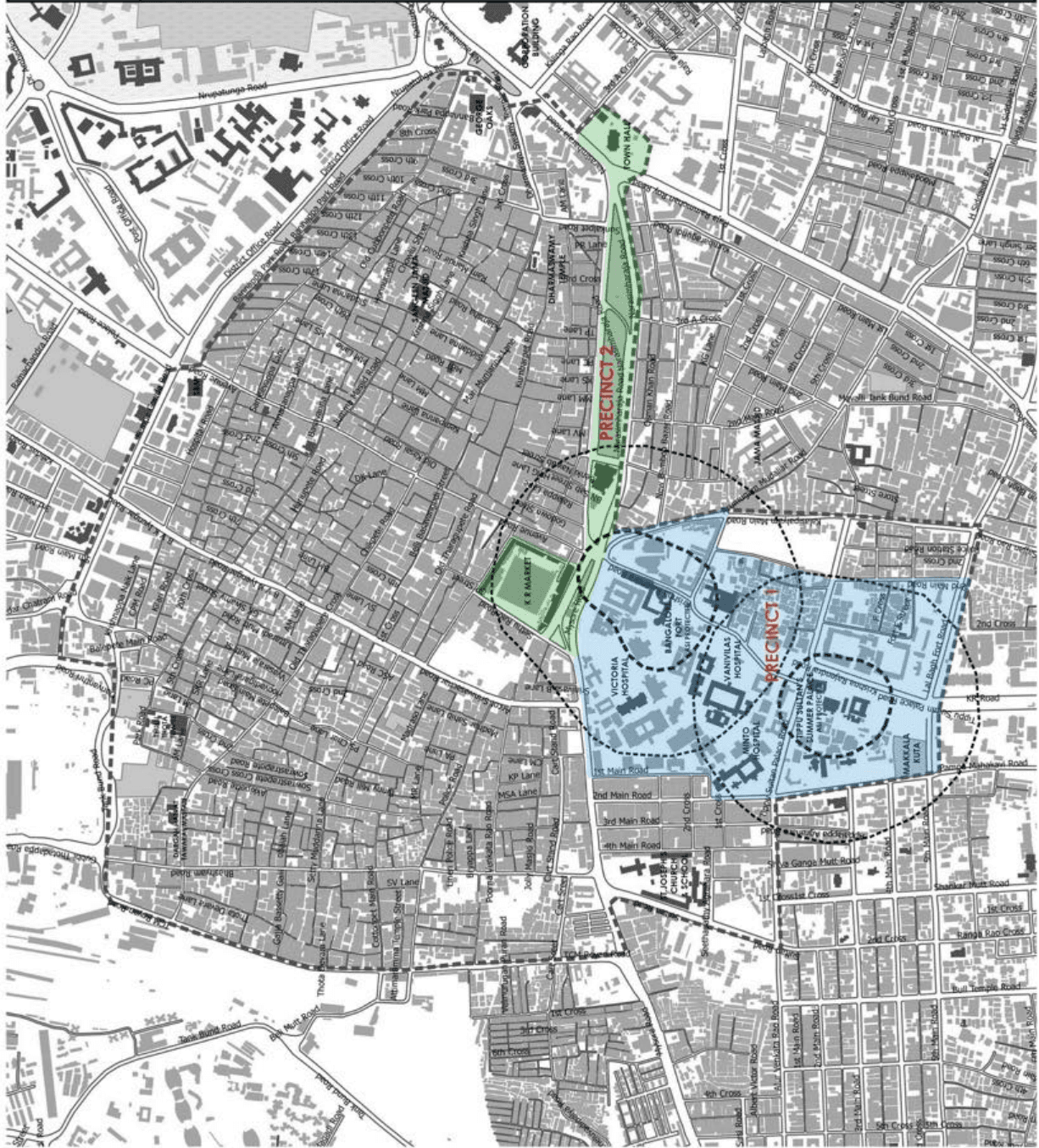

Precinct 1: Bangalore Fort and Tippu's Summer Palace Precinct Starting from Mysore road turning towards Kala-sipalya road, turning inward to Vanivilas road, and continuing along the inner road of Kalasi-
EXTENTS OF THE PRECINCTS IN THE HERITAGE ZONE
palya bus depot, meeting the Tippu Sultan Palace road and extending along Dispensary road / 2nd main road to meet the Lalbagh Fort and meeting Sanjay theatre circle, after which it extends along teh 5th main road to enclose the Makkala Koota park and turning at PMK road to enclose the heritage sites of Chamaraj Sanskrit College, Minto Hospital; and turning towards 1st main road to close the precinct again at Mysore road such that the listed heritage sites of Banga- lore Fort, VaniVilas institutional buildings, Victoria hospital.
PRECINCTS 1 & 2 Petta and Bangalore Fort
RMP for BDA LPA-2031 (Draft) MAP 4: PROPOSED HERITAGE
BASFALDGE DEVELOPMENT AUTHORITY
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
main road along the Kempabuddi lake further along the walkway separating Kempabuddi kere and Jinke park/Rajkumar park till the Bandi mahakalli temple and the Kempegowda tower
grounds further turning towards 1st main road leading towards NR Colony park again turning towards 3rd Model house street leading towards Nagasandra circle and later connecting the South end circle, turn towards RV road leading to Teacher's college circle, turning right towards Kanakapalya road leading to Ashoka pillar circle turning towards Siddapura road connecting the Hosur main road, continuing along the Lal bagh boundary taking a turn towards Krumbigal main road and reaching the RV Road junction turning to RV Road leading towards Lal Bagh Minerva circle, turning towards Lal Bagh fort road connecting KR Circle at KIIMS hospital junction, further continuing in KR Road until Vanivilas road at National college junction turning towards Vani vilas leading towards Ramakrishna ashram circle, turning along Bull temple road until BSNL office and turn to the cross road leading to KG Nagar main road and further continue along Devanathachar street and Sameerpura main road along the Kamaabuddi Lake
RMP for BDA LPA-2031 (Draft) MAP 5: PROPOSED HERITAGE ZONE 3
BANCALOGE DEVELOPMENT AUTHORITY
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)

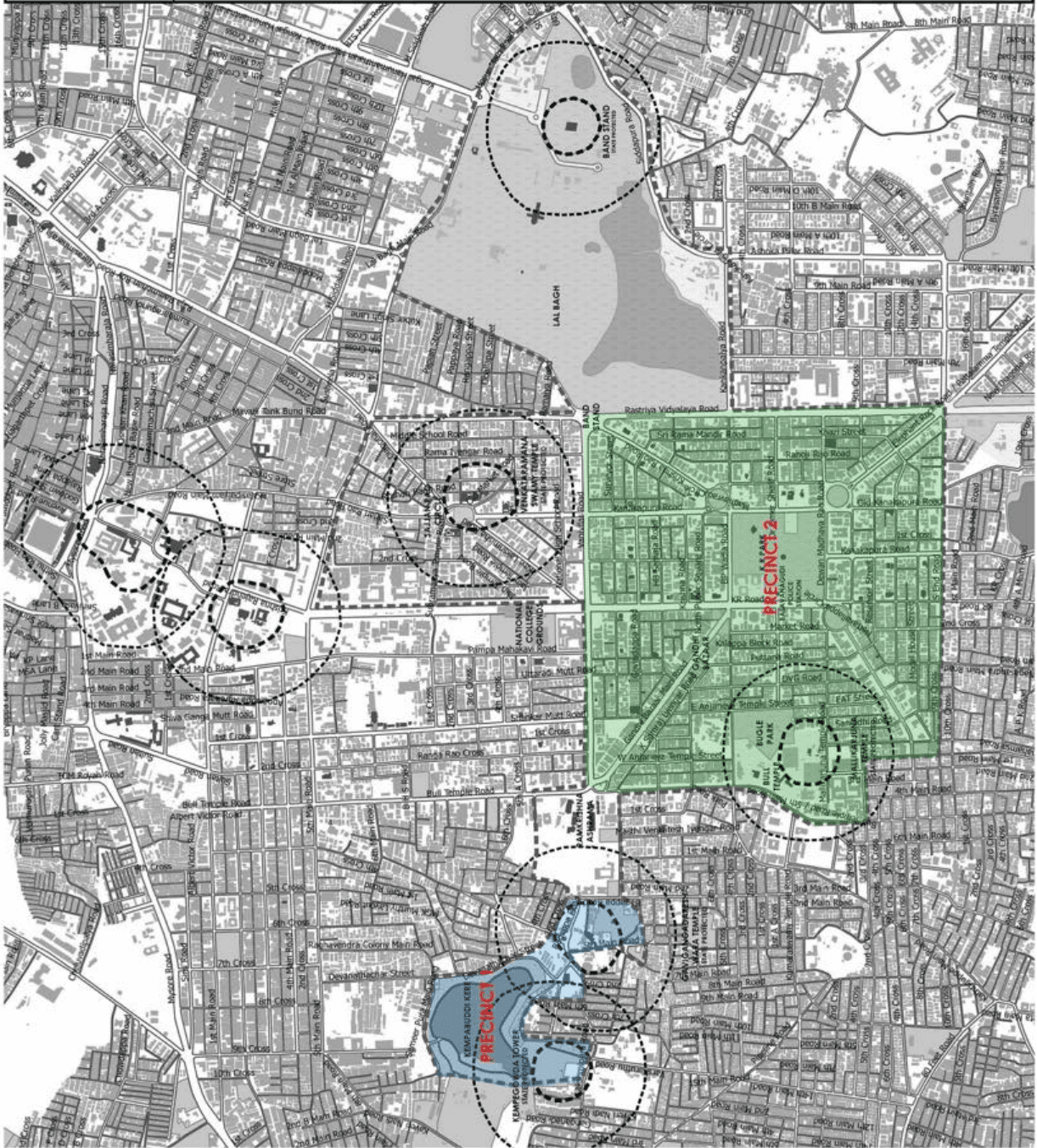

Precinct 2: Basavanagudi planned area The precinct includes Ramakrishna circle extending along Bull temple road leading towards the Bull temple and taking a turn to the road leading to APS college grounds further turning towards 1st main road leading towards NR Colony park again turning towards 3rd Model house street leading towards Nagasandra circle and later connecting the Southend circle, turn towards RV road leading to Lal bagh circle at the West end entrance and turning to Vanivilas road leading to Ramakrishna junction.
Precinct 1: Gavi Gangadeshwara temple with Kempegowda tower and Kempabuddi lake Kempabuddi kere starting from Bandi Mahakali temple further covering the Gavigangadareshwara temple along Lakshmipura main road continuing towards with the Harihara temple park along 5th main road, cross road and 3rd main road connecting Syndicate bank circle leading towards Bagappa connecting the Kempegowda circle and turning to KG Nagar main road again turning towards Devanathachar street and Sameerpura main road along the Kempabuddi lake further along the walkway separating Kempabuddi kere and Jinke park/Rajkumar park till the Bandi mahakali temple and the Kempegowda tower
EXTENTS OF THE PRECINCTS IN THE HERITAGE ZONE

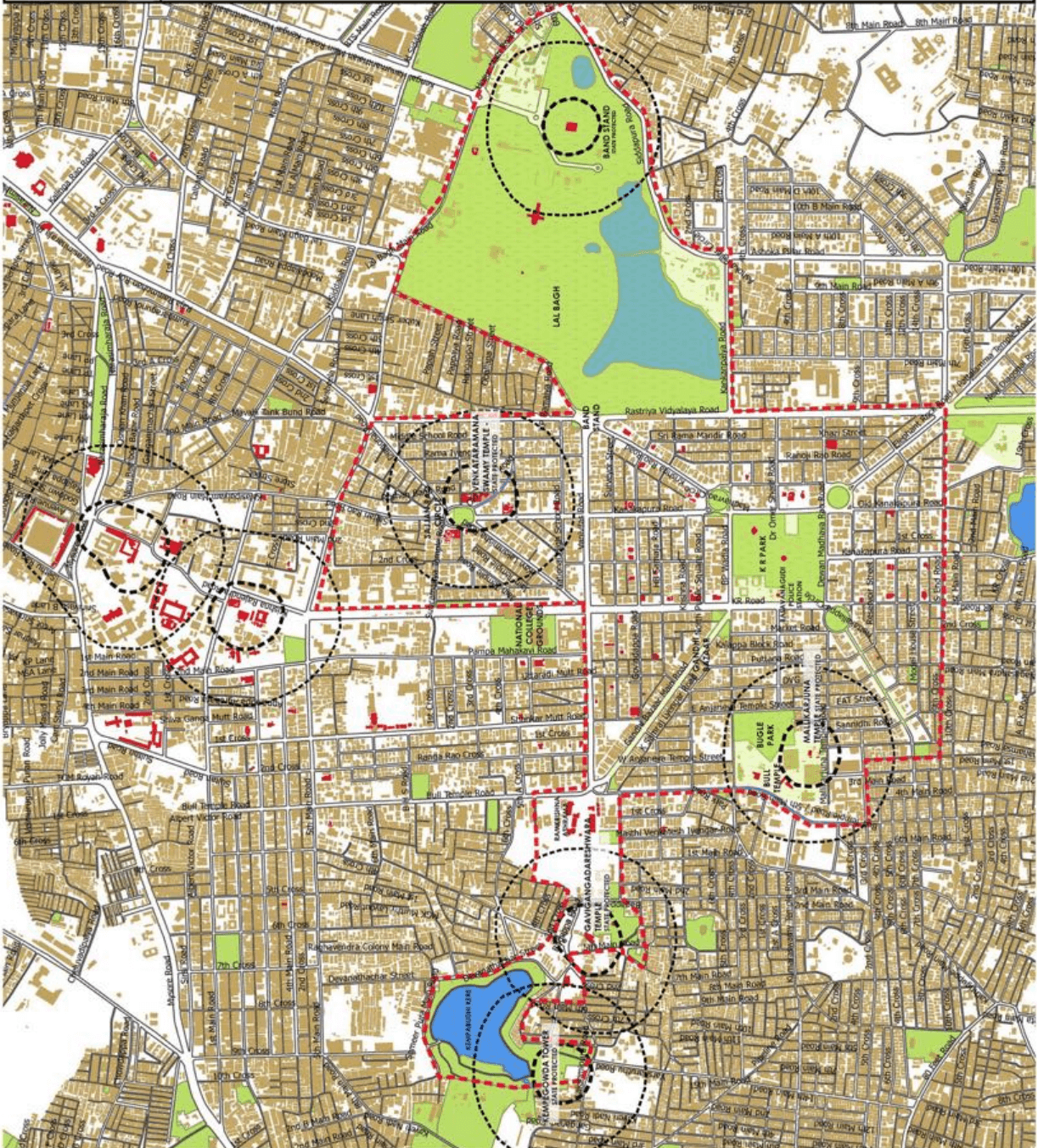

Basavanagudi and VV Puram Heritage Zone
RMP for BDA LPA-2031 (Draft) MAP 6: PROPOSED HERITAGE PRECINCTS 1 & 2
BANANA DEVELOPMENT AUTHORITY

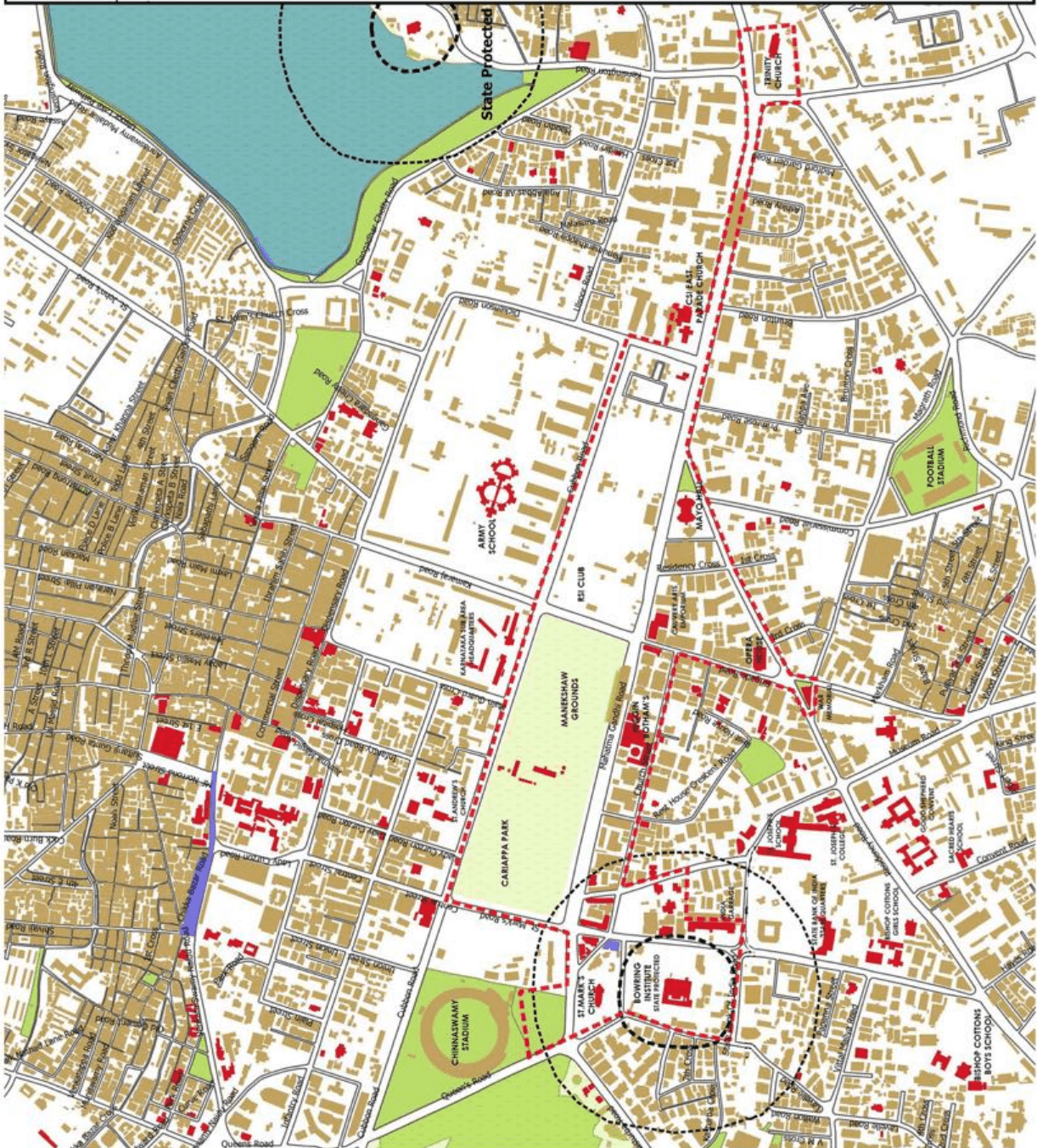

EXTENTS OF THE HERITAGE ZONE This heritage zone extents begins at the junction of MG Road, Kasturba road and Queens road, the Queens Circle including the Mahatma Gandhi park, continuing to
Ann Kumore Circle, along the WIC Road, taking a turn and extending northwards at St. Marks Road, and again turning at Cubbon road to include the Cariappa park, Manek-
shaw Grounds, RSI club, the turning to Dickenson Road back towards MG road, to include along the property depth of the CSI East Parade church, and including further
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
the Trinity Church, continuing back to MG road, and turning to Residency road to include Mayo Hall, extending upto Opera House and turning to Brigade road and turning again at Church Street turning at Museum Road and turning again to include the India Garage heritage building to meet the State Bank of India Road to include the State Protected building of Bowring Institute, turning to close at Lavelle Road and back to Queens circle junction.
BANANA DEGEMPMENT AUTHORITY

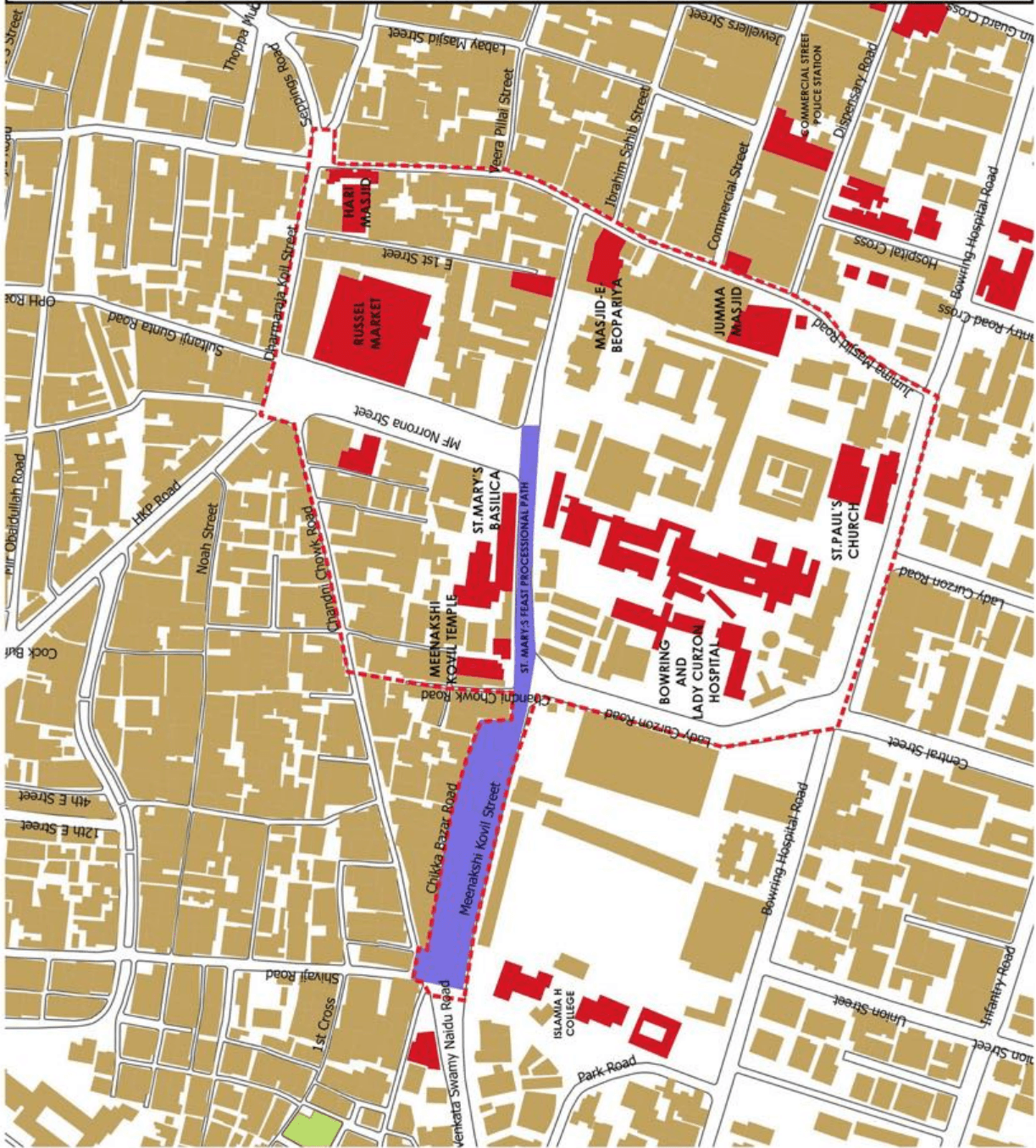

EXTENTS OF THE HERITAGE ZONE Strating from the junction of Sri Dandamari Amman Temple and Elgin Cinema, at the junction of Venkata Swamy road, Meenakshi Kovil street towards Chandni Chowk road, meeting the Chandni Chowk junction and extending along Dharamaraja Koil Street to enclose the Russel Market and turning at the
corner of Masjid-E-Azam towards the Jumma Masjid Street and turning towards Bowring Hospital Road and turning along the Lady Curzon road to enclose the Bowring and Lady Curzon hospital and turning along the Meenakshi Kovil street to close the heritage zone at the junction again.
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
BANANA DEPARTMENT AUTHORITY

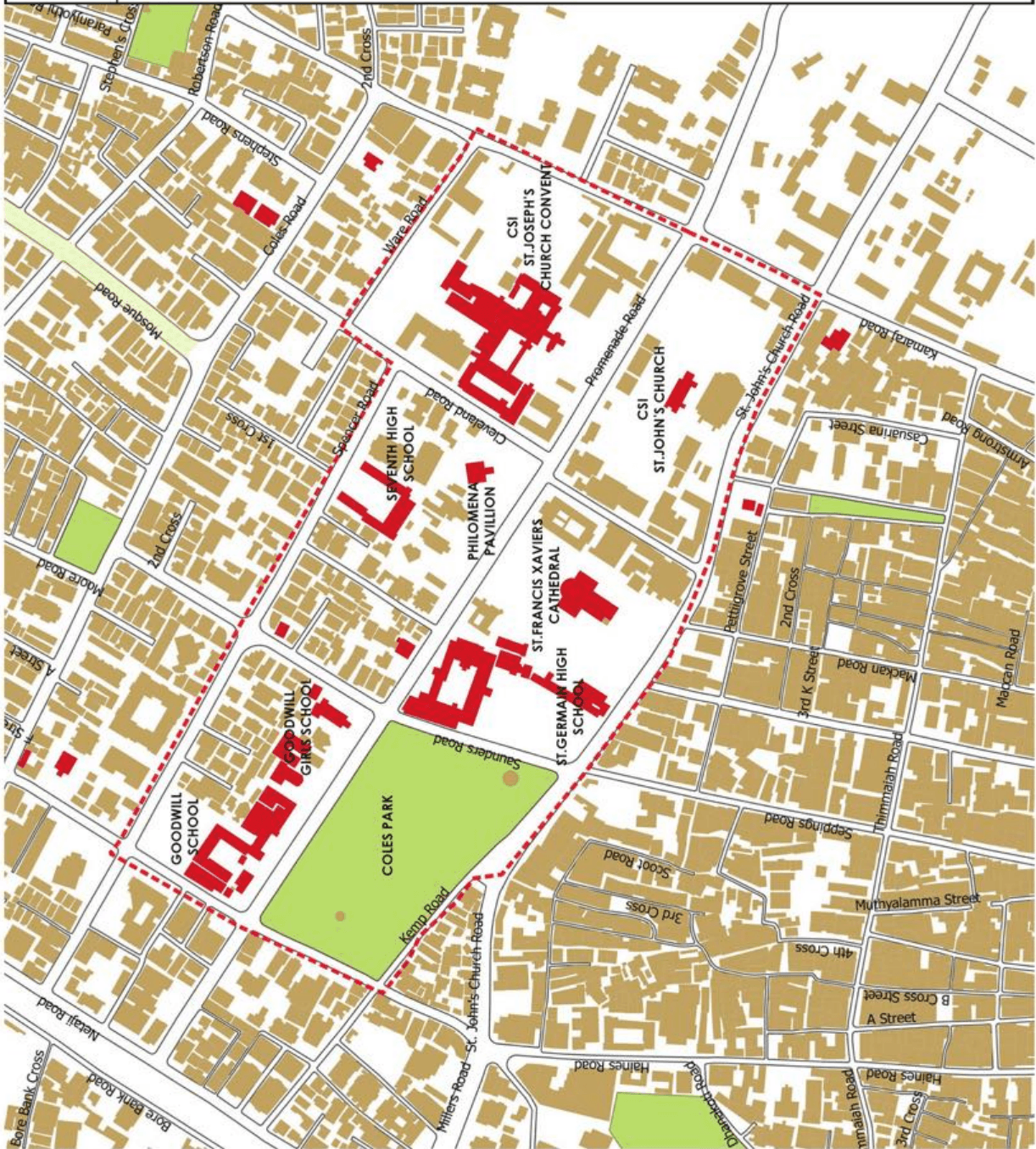

EXTENTS OF THE HERITAGE ZONE The zone extent includes the Coles Park along Kemp road connecting St.John's Church road turning at Wheeler road junction towards Thomas market reaching further till Ware road turning at Cleveland road turning towards the same and further turning to Spencers road and meeting the Haines road to close the precinct.
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
BANANA DEPARTMENT AUTHORITY

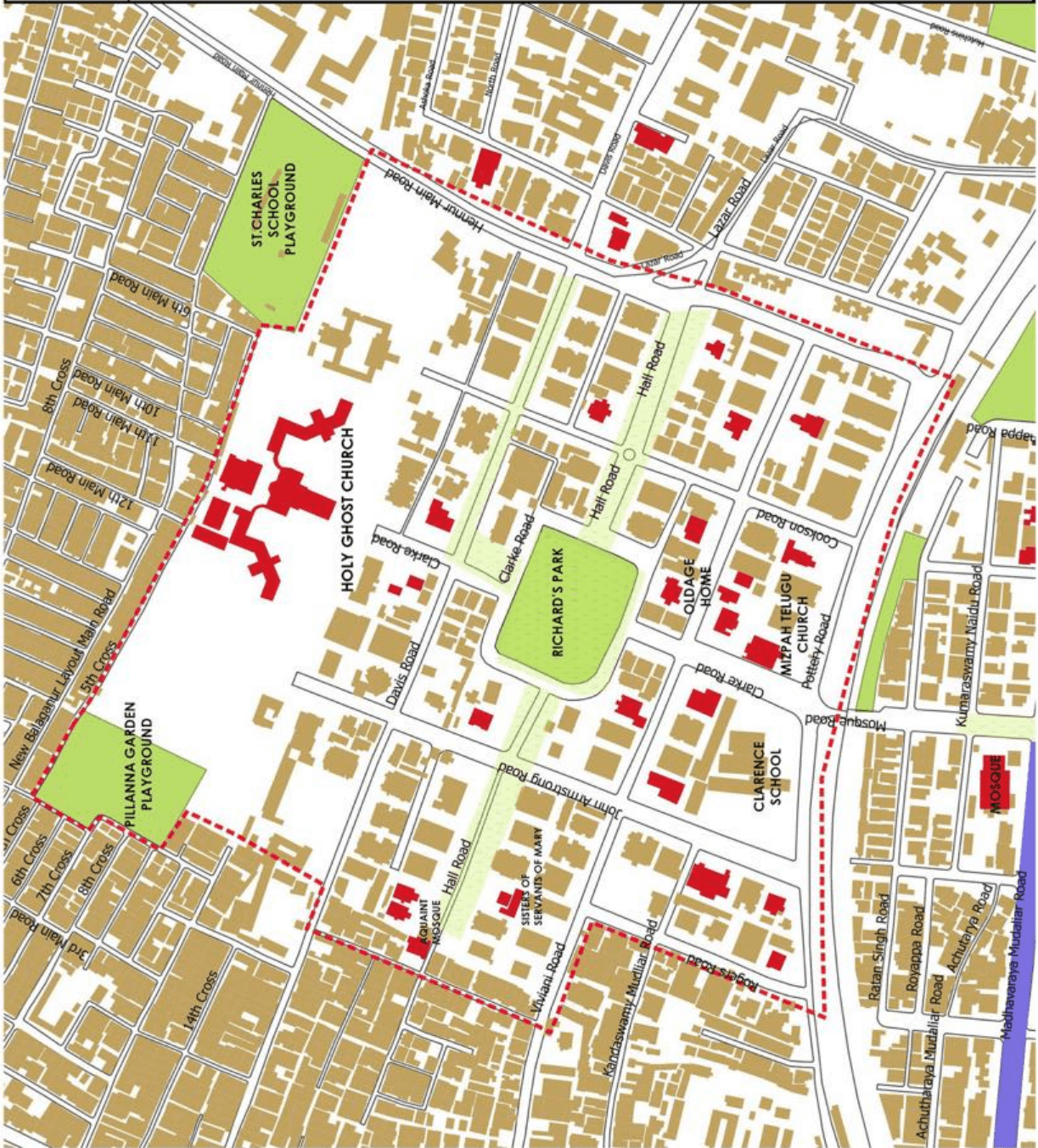

EXTENTS OF THE HERITAGE ZONE The heritage zone includes starting from St.Charles high school along the Hennur main road, turning at 5th cross to enclose the Holy Ghost Church and turning along Pillanna Garden Football club towards Davis road along the edge of Karnataka Cross Sisters Society further continuing along the road opposite St.Alphonsus high school, crossing Hall road reaching Viviani road turning towards Florence PU college again turning to Rogers road and reaching Pottery road, turning towards Hennur main and reaching till the Corporation Grounds.
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
BANANA DEVELOPMENT AUTHORITY

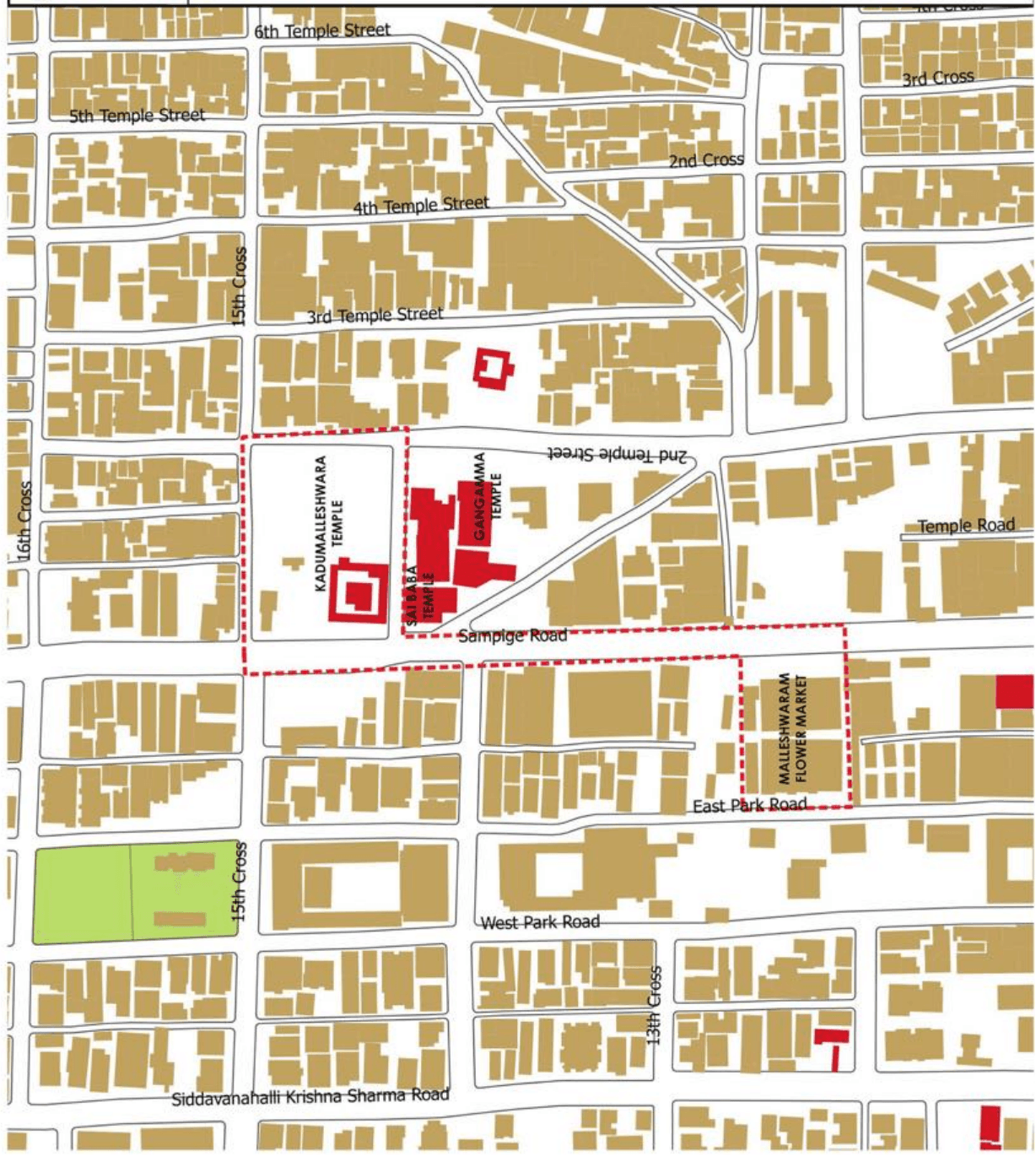

EXTENTS OF THE HERITAGE ZONE The extents of the Kadu Malleshwara temple property along the 15th cross and turning south to 2nd temple street and extending along its property depth and meeting the Sampige road, extending till the Malleswaram flower market along the Sampige road, extending till the East Park road and turning again to meet the Sampige road and closing the precinct at the Kadu Malleswara temple
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
BANCAUSE DEVELOPMENT AUTHORITY

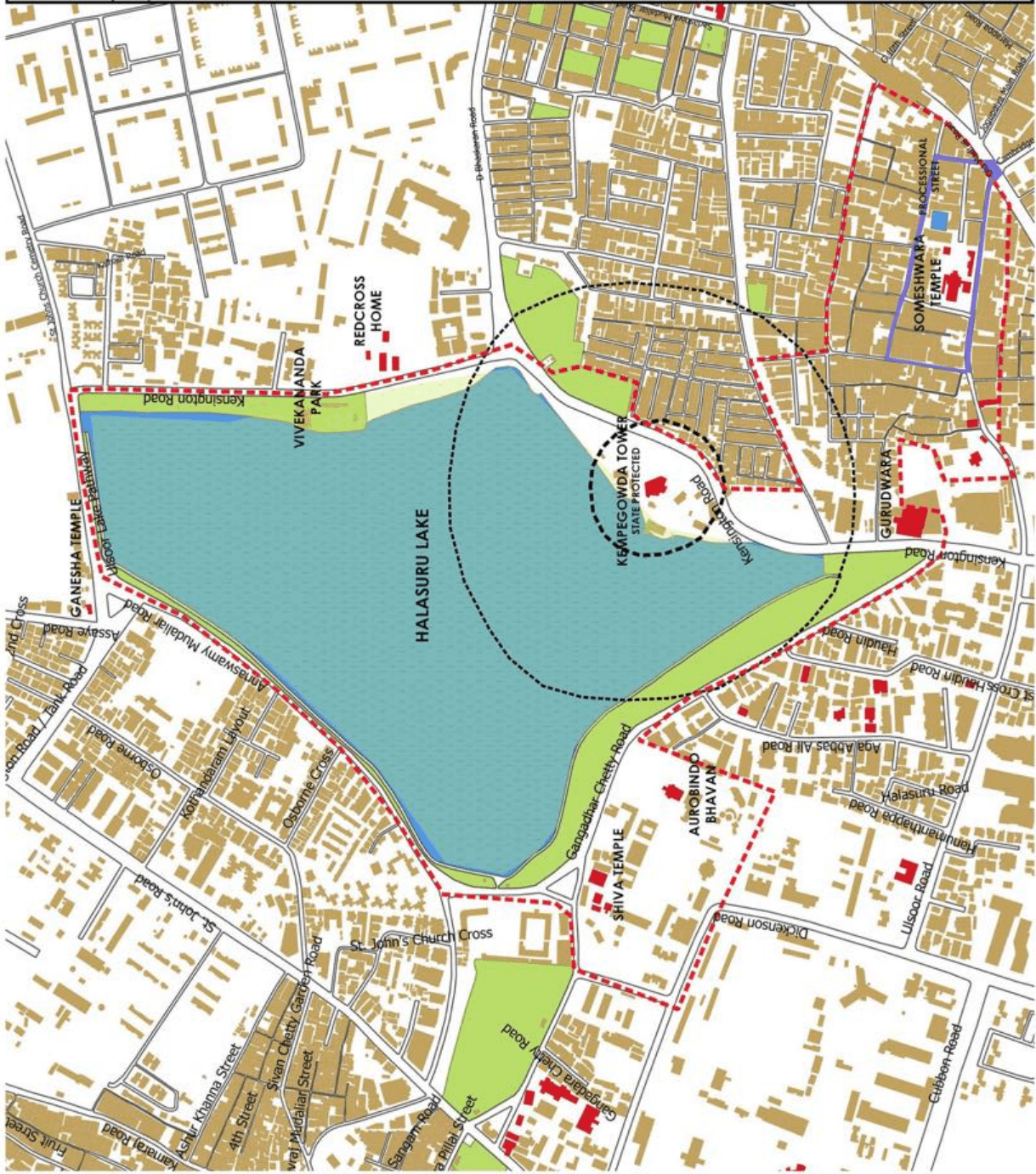

EXTENTS OF THE HERITAGE ZONE The area comprises of the extent from Ulsoor lake which is bounded along roads namely Kengiston road, turning at Yellamen 2nd Cross road to enclose the Ulsoor area settlement and turning to RK Mutt road, extending and bounded by the Swami Viveka-
RMP for BDA LPA-2031 (Draft) MAP 13: PROPOSED HERITAGE ZONE 9 Ulsoor Heritage Zone
BANANA DEPARTMENT AUTHORITY

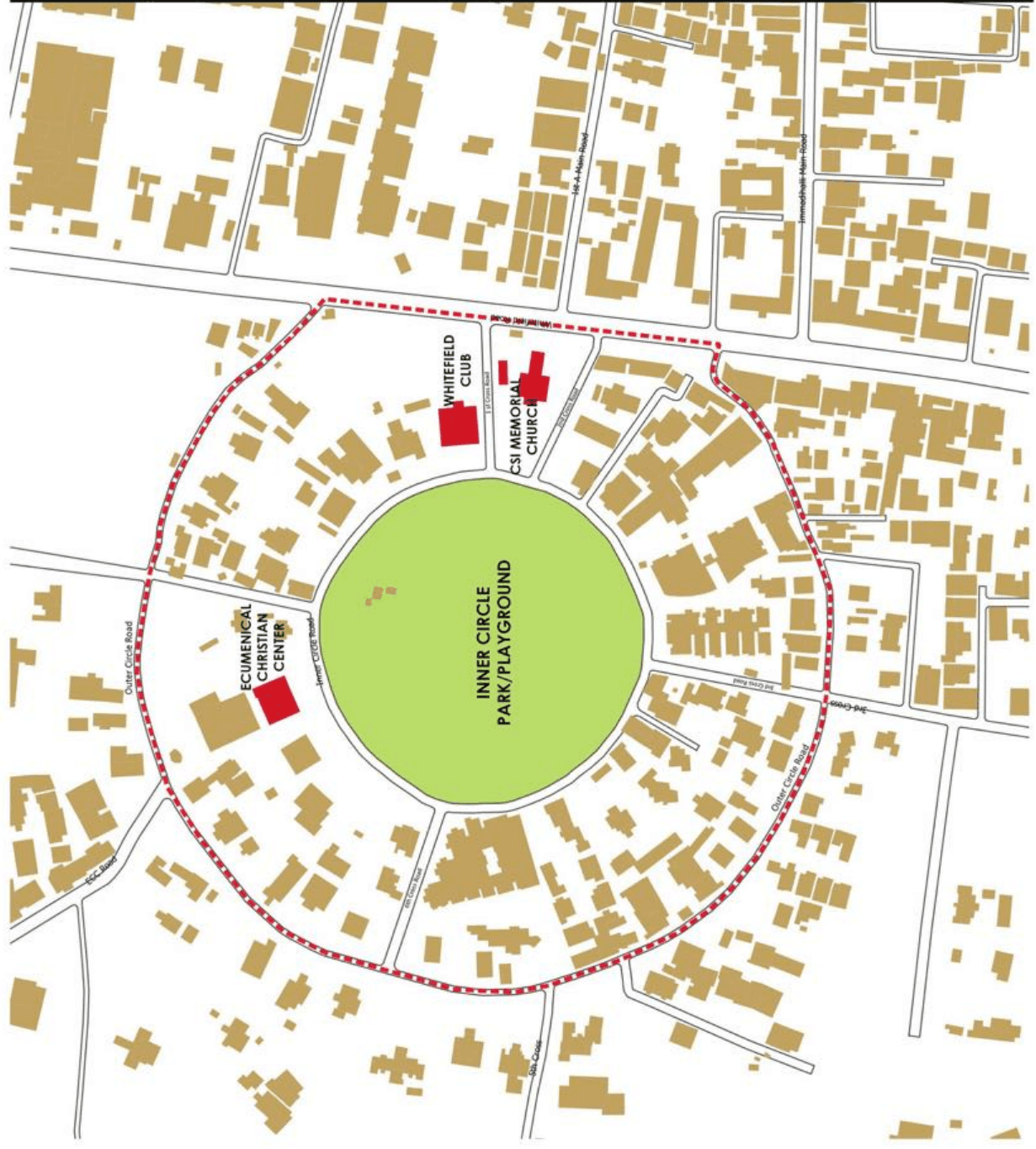

RMP for BDA LPA-2031 (Draft) MAP 14: PROPOSED HERITAGE ZONE 1 The Whitefield Inner Circle Heritage Zone
EXTENTS OF THE HERITAGE ZONE The zone is bounded by the Whitefield outer circle road and along the Whitefield main road.

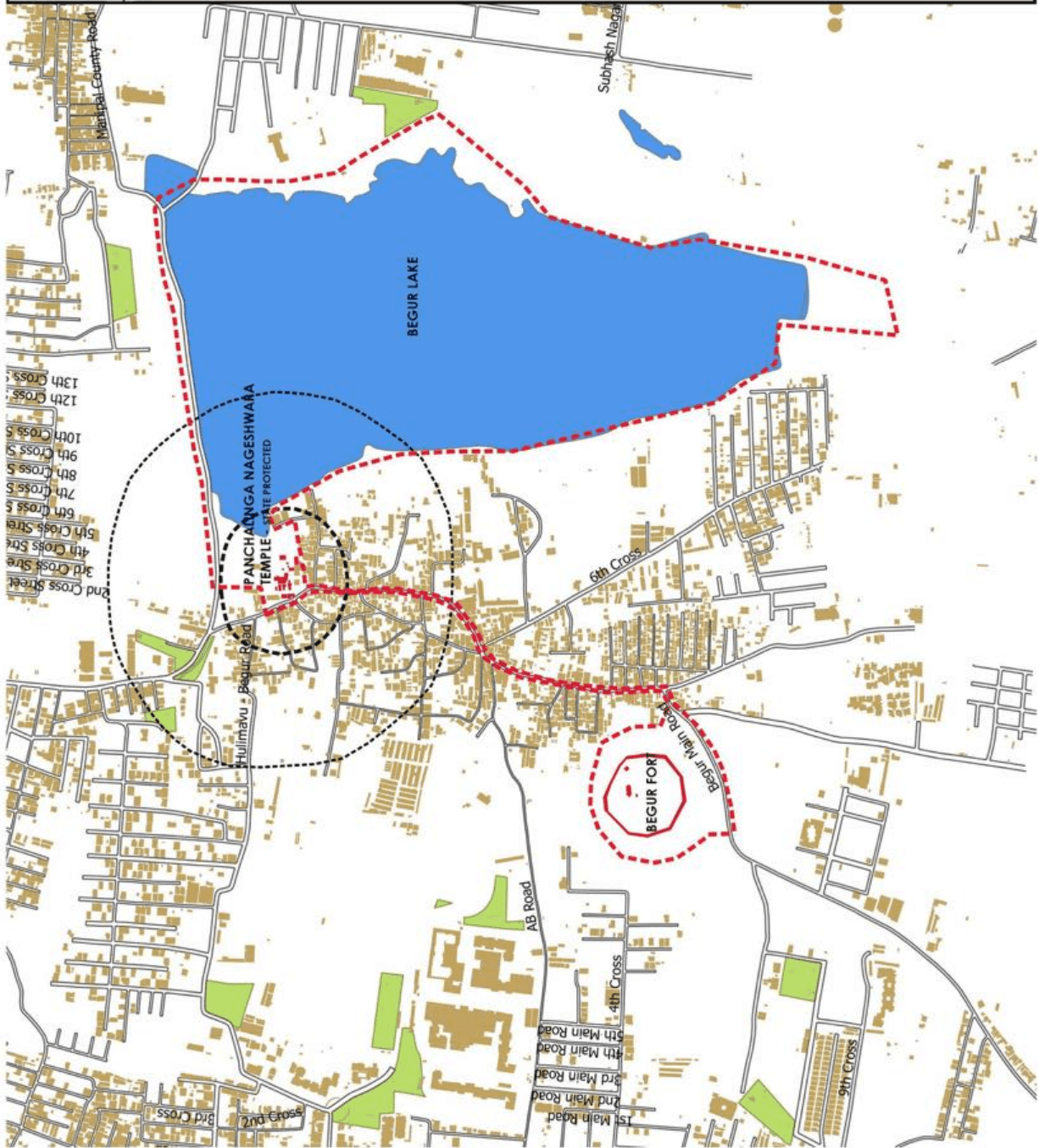

EXTENTS OF THE HERITAGE ZONE The Heritage zone extends from the Pancha Linga Nageshwara temple-Begur, goes along the Harappanagalli-Begur road on the north of Begur lake, circumscribes the lake, returns to the temple complex, continues along the Begur main road southward turning to Begur fort where it encircles it and turns into the Begur road again to close the zone boundary at the Pancha Linga Nageshwara temple complex.
RMP for BDA LPA-2031 (Draft) MAP 15: PROPOSED HERITAGE ZONE 11
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
SANSALAWA DEVELOPMENT AUTHORITY

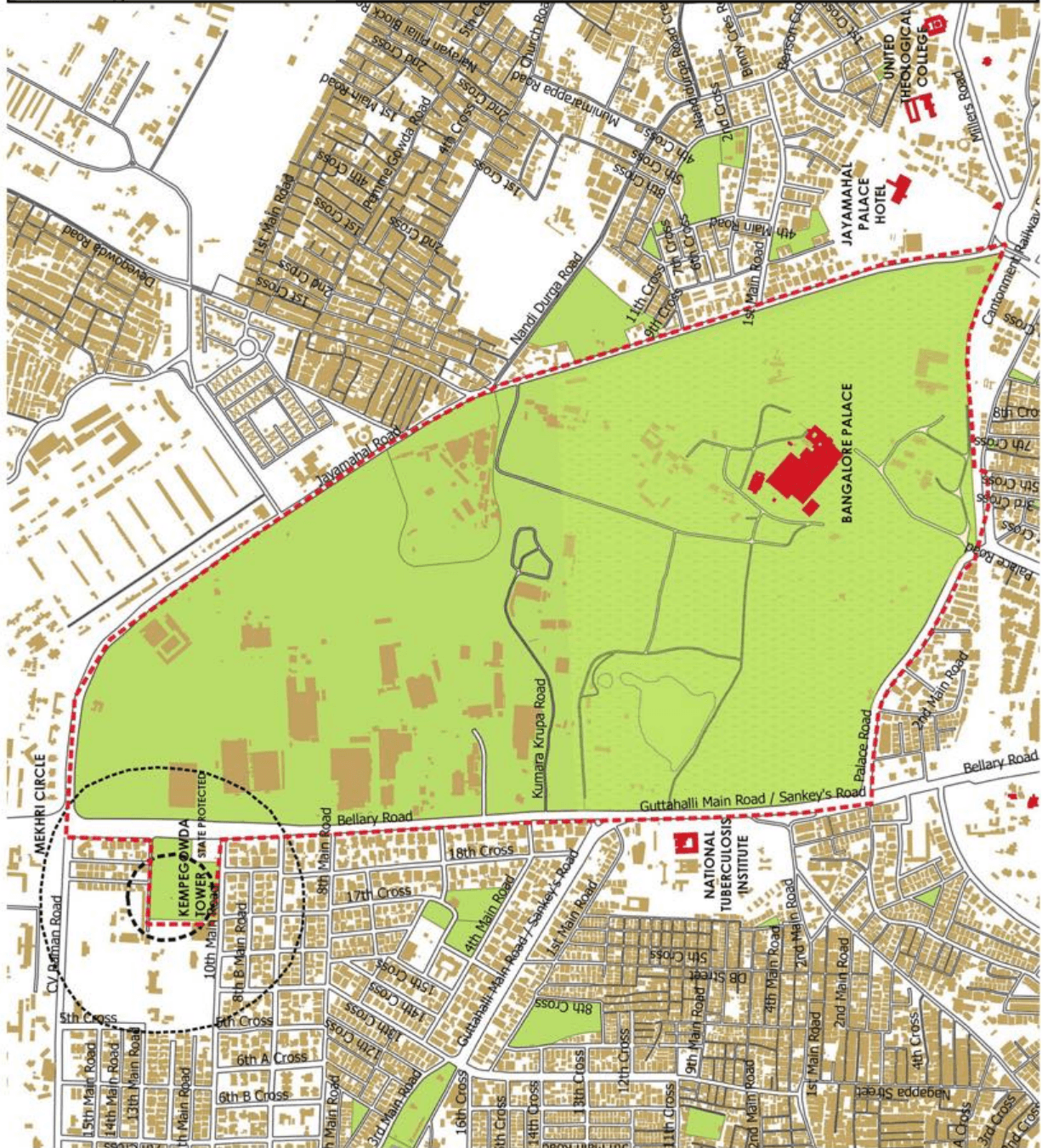

RMP for BDA LPA-2031 (Draft) MAP 16: PROPOSED HERITAGE ZONE Bangalore Palace Heritage Zone
EXTENTS OF THE HERITAGE ZONE It includes the Bangalore Palace and the Palace grounds bounded by roads of Palace cross road, Jayamahal 2nd main road, meeting at Mekri Circle, turning towards the Bellary road and including the Kempegowda Tower Park, continuing along the Bellary road, to close the zone at Palace cross road again.
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
Annexure -5:
The image contains no text or content to process. It is a blank white background with no visible content, text, or symbols. Therefore, the correct OCR output is an empty string.
LEGEND Heritage Zones Built Heritage Natural Heritage Cultural Heritage Roads Buildings WaterBodies Parks & Open spaces Prohibited area (100mts) Regulated area (200mts)
